1. Introduction

A Traction-type Backpack Home Elevator Self-built Villa is a Residential Elevator solution designed for self-built villas, private houses, duplex homes, and customized residential buildings where flexible vertical transportation is required. By combining a traction drive system with a backpack-style elevator structure, this type of home elevator can provide convenient movement between floors while adapting to different architectural layouts.

Self-built villas are often different from standardized commercial residential buildings. Their floor plans, structural systems, floor heights, staircase positions, balconies, entrances, and available installation spaces can vary considerably. For this reason, selecting a suitable home elevator requires more than simply choosing a standard cabin size.

A traction-type backpack home elevator can be considered for new villa construction as well as renovation projects. Its side-oriented structural arrangement can offer flexibility when the available installation space is limited or when homeowners want to position the elevator close to an exterior wall, staircase, balcony, or other suitable area.

The traction drive system uses an electric motor and traction mechanism to move the elevator car along guide structures. A properly configured traction system can provide controlled acceleration, smooth movement, accurate leveling, and reliable operation for everyday residential transportation.

For self-built villas, customization is particularly important. The elevator may need to match the building's floor height, number of floors, cabin dimensions, door locations, power supply, architectural appearance, and structural conditions.

A well-planned Traction-type Backpack Home Elevator Self-built Villa can therefore combine accessibility, space efficiency, architectural flexibility, and modern residential elevator technology in one customized solution.

2. What Is a Traction-type Backpack Home Elevator?

A Traction-type Backpack Home Elevator combines two major technologies: an electric traction drive and a backpack-style elevator structure.

Traction Drive

A traction elevator uses an electric motor to rotate a traction sheave or equivalent traction mechanism. The traction components move the elevator car through the guide system.

The controller manages the elevator's:

• Starting

• Acceleration

• Travel

• Deceleration

• Leveling

• Door operation

• Safety functions

This allows the elevator to provide controlled movement between residential floors.

Backpack Structure

The backpack structure places major supporting and guiding components toward one side of the elevator car.

This arrangement can provide additional flexibility when integrating the elevator into a self-built villa.

Instead of requiring a conventional central elevator arrangement, the structure can potentially be positioned near:

• Exterior walls

• Staircases

• Balconies

• Building corners

• Entrance areas

• Existing architectural openings

The final installation arrangement depends on the building structure and elevator design.

3. Why Self-built Villas Need Customized Home Elevators

Self-built villas often provide homeowners with greater freedom in architectural design, but this flexibility also creates unique elevator requirements.

Unlike standardized apartment buildings, a self-built villa may have:

• Non-standard floor heights

• Large or small floor areas

• Irregular floor plans

• Custom staircase layouts

• Large balconies

• Exterior terraces

• Different door positions

• Special architectural finishes

• Limited elevator installation space

A standard elevator may not always fit these conditions.

A customized backpack home elevator can be designed according to the actual building dimensions.

This approach allows the elevator to be considered during the architectural planning stage instead of treating it as an independent product after construction has been completed.

4. Typical Specifications

The following specifications are typical reference values for residential projects. Actual specifications should be confirmed according to the selected elevator model and building conditions.

These values should be treated as general references rather than fixed product specifications.

Before purchasing, the manufacturer should confirm:

• Rated load

• Speed

• Travel height

• Cabin dimensions

• Door dimensions

• Pit requirements

• Overhead requirements

• Motor power

• Power supply

• Structural loads

• Safety configuration

5. Main Features

5.1 Designed for Self-built Villas

The elevator can be planned around the specific architectural characteristics of a self-built villa.

This is especially useful when the house has a custom floor plan that differs from standard residential buildings.

The elevator can be designed according to actual site measurements rather than relying only on standard building dimensions.

5.2 Backpack-type Structure

The backpack structure can help position the elevator support system toward one side of the cabin.

This can provide more flexibility when the elevator needs to be installed close to an existing wall or architectural structure.

For renovation projects, this may reduce the need to redesign large portions of the building.

5.3 Traction Drive System

The electric traction system provides controlled movement between floors.

Potential advantages include:

• Smooth acceleration

• Controlled deceleration

• Precise leveling

• Efficient operation

• Stable movement

• Convenient control

Actual performance depends on the motor, controller, rated load, speed, and overall elevator configuration.

5.4 Flexible Installation

A self-built villa may provide several potential elevator installation locations.

Depending on the project, the elevator may be installed:

• Inside the villa

• Beside a staircase

• Near an exterior wall

• Near a balcony

• At an entrance

• In a dedicated shaft

• In an exterior enclosure

A professional technical survey should determine the most suitable position.

5.5 Customized Appearance

Home elevators can be customized to complement villa architecture.

Possible materials include:

• Stainless steel

• Tempered glass

• Aluminum

• Decorative panels

• Customized flooring

• LED lighting

The cabin can be designed to provide a modern, minimalist, luxury, or practical appearance.

6. Advantages of a Traction-type Backpack Home Elevator for Self-built Villas

6.1 Improves Residential Accessibility

A home elevator provides convenient vertical transportation without requiring residents to use stairs for every trip.

This can be valuable for:

• Elderly family members

• Children

• People with mobility difficulties

• People carrying groceries

• People carrying luggage

• Residents transporting household items

Accessibility can be considered from the beginning of the villa design.

6.2 Makes Better Use of Building Space

A compact elevator structure can help reduce the impact on usable residential areas.

For smaller villas, this can be an important advantage because the elevator should provide convenience without unnecessarily reducing living space.

6.3 Suitable for New Construction

The best time to plan a home elevator is often before villa construction begins.

When the elevator is considered during the architectural design stage, the building can reserve:

• Elevator position

• Structural support

• Electrical supply

• Door openings

• Landing space

• Pit or alternative foundation requirements

• Overhead clearance

This can make installation easier and reduce later structural modifications.

6.4 Suitable for Renovation

A backpack home elevator can also be considered for an existing self-built villa.

The external wall, balcony, staircase, or another suitable area may provide an alternative location when internal space is limited.

The feasibility of renovation installation depends on the building's structure.

6.5 Flexible Design

Self-built villas often have individual architectural styles.

The elevator can therefore be customized according to the building.

Potential customization areas include:

• Cabin size

• Rated load

• Number of stops

• Door location

• Cabin material

• Exterior enclosure

• Lighting

• Control panel

• Handrails

7. Applications

7.1 Three-story Self-built Villa

A three-story villa may use a residential elevator to connect the main entrance, living floor, bedrooms, and upper recreational spaces.

The elevator can provide convenient access between floors without requiring residents to rely exclusively on stairs.

7.2 Two-story Private Villa

For a two-story villa, a Compact Traction Home Elevator can connect the ground floor and upper living areas.

Possible destinations include:

• Bedrooms

• Living rooms

• Home offices

• Balconies

• Storage rooms

• Terraces

7.3 Multi-generational Villa

In homes occupied by multiple generations, accessibility can be an important consideration.

A residential elevator can provide convenient access for elderly residents while remaining useful for younger family members.

7.4 Villa Renovation

If an existing villa lacks an elevator, an exterior or semi-exterior backpack configuration may provide an alternative to major interior reconstruction.

7.5 Large Self-built Residential Property

Large private homes may have multiple floors and complex architectural layouts.

A customized elevator can provide vertical transportation while integrating with the overall building design.

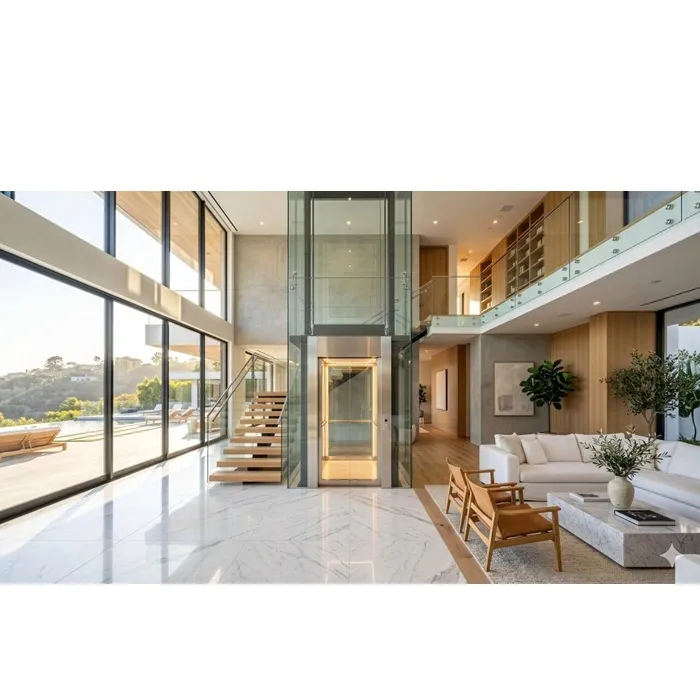

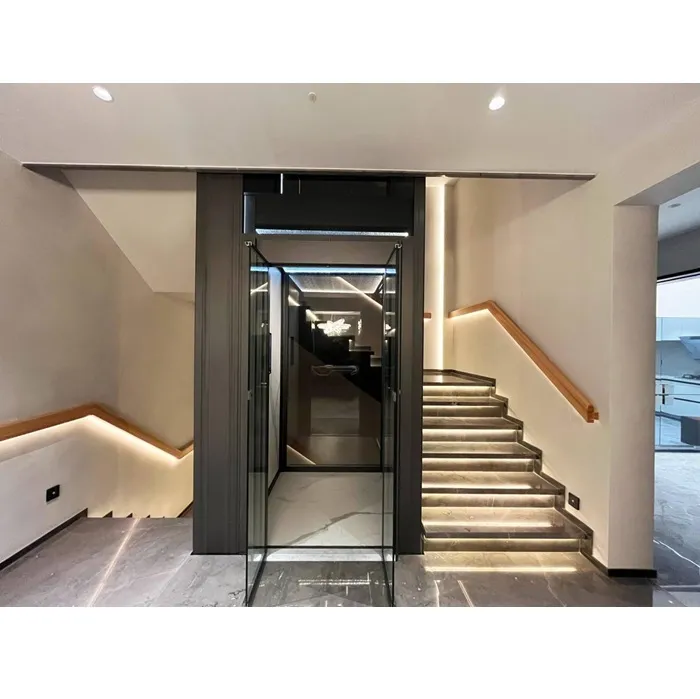

8. Indoor Installation

Indoor installation is suitable when sufficient space is available inside the building.

Potential locations include:

• Staircase areas

• Hallways

• Living room corners

• Entrance areas

• Central architectural spaces

Advantages

• Protected from weather

• Convenient indoor access

• Easier environmental control

• Direct connection to indoor rooms

Considerations

• Requires sufficient interior space

• May affect the floor plan

• May require structural modifications

9. Outdoor Installation

An exterior elevator can be an alternative when indoor space is insufficient.

Potential locations include:

• Exterior walls

• Balconies

• Terraces

• Side yards

• Building extensions

Outdoor installation requires special attention to:

• Rain protection

• Drainage

• Corrosion resistance

• Wind loads

• Temperature

• Sunlight

• Electrical protection

The elevator enclosure should be selected according to the local climate.

10. Installation Requirements

10.1 Site Measurement

Before ordering, accurate measurements should be taken.

Important dimensions include:

• Floor-to-floor height

• Total travel height

• Available width

• Available depth

• Door openings

• Headroom

• Pit conditions

• Landing space

10.2 Structural Assessment

The building must be evaluated to determine whether it can safely support the elevator.

The assessment may include:

• Floor slabs

• Beams

• Columns

• Walls

• Foundations

• Elevator supports

• Anchor points

If necessary, additional structural reinforcement can be designed.

10.3 Electrical Requirements

The power supply should match the elevator's motor and control system.

Before installation, confirm:

• Voltage

• Frequency

• Phase

• Rated power

• Grounding

• Electrical protection

Requirements vary by elevator model and destination market.

11. How to Install a Backpack Home Elevator in a Self-built Villa

Step 1: Architectural Planning

The elevator position should ideally be determined before construction.

This allows the architect to reserve adequate space.

Step 2: Technical Site Survey

The elevator supplier measures the building and reviews structural conditions.

Step 3: Elevator Configuration

The manufacturer selects:

• Load capacity

• Cabin dimensions

• Number of stops

• Travel height

• Door arrangement

• Drive configuration

Step 4: Technical Drawings

Detailed drawings are prepared for construction coordination.

Step 5: Structural Preparation

The building contractor prepares the required shaft, foundation, supports, landing openings, or alternative installation structure.

Step 6: Elevator Installation

Technicians install the guide structure, traction system, cabin, doors, controller, electrical components, and safety equipment.

Step 7: Testing

The elevator is tested for operation, leveling, doors, controls, safety systems, and emergency functions.

Step 8: Commissioning

The elevator should only enter normal operation after the required inspection and acceptance procedures have been completed.

12. How to Use the Elevator

The elevator is designed for simple daily operation.

Entering

Wait for the elevator to arrive and the door to open completely.

Check that the cabin floor is correctly aligned with the landing.

Selecting a Floor

Press the destination button.

Do not repeatedly press buttons or interfere with the control panel.

During Travel

Remain inside the cabin.

Do not lean against doors or attempt to open them while the elevator is moving.

Exiting

Wait until the elevator has completely stopped.

Allow the door to open before leaving the cabin.

13. Safety Features

A residential elevator should incorporate multiple safety functions.

Depending on the model, these may include:

• Door interlocks

• Overload protection

• Overspeed protection

• Emergency braking

• Emergency stop

• Door obstruction protection

• Automatic leveling

• Emergency alarm

• Emergency lighting

• Power failure protection

• Rescue functions

The exact safety configuration should be confirmed with the manufacturer.

Users should never attempt to bypass safety devices or repair elevator machinery themselves.

14. Maintenance

Regular maintenance helps maintain safe and reliable operation.

Important inspection areas include:

Traction Equipment

Inspect the motor, traction components, ropes or traction elements, and associated mechanical parts.

Guide System

Check guide rails and related components for wear, alignment, and abnormal conditions.

Doors

Inspect:

• Door panels

• Door locks

• Interlocks

• Sensors

• Door drive mechanisms

Electrical System

Check:

• Controller

• Wiring

• Sensors

• Safety circuits

• Emergency systems

Cabin

Inspect:

• Buttons

• Lighting

• Alarm

• Flooring

• Handrails

Outdoor Installation

For exterior elevators, also inspect:

• Enclosure

• Corrosion

• Drainage

• Water ingress

• Structural fasteners

• Weather seals

Maintenance schedules should follow manufacturer recommendations and applicable local regulations.

15. Energy Efficiency

Energy consumption is an important consideration for homeowners.

A residential elevator normally operates intermittently rather than continuously.

Factors affecting energy consumption include:

• Motor efficiency

• Rated load

• Travel height

• Number of trips

• Controller

• Lighting

• Door operation

• Standby functions

A modern traction drive can be configured for efficient residential operation.

However, actual energy consumption should be determined from the specific elevator's technical data.

16. Customization Options for Self-built Villas

Self-built villas often benefit from a customized elevator solution.

Cabin Dimensions

The cabin can be designed according to the available space and intended passenger capacity.

Load Capacity

The rated load can be selected based on the expected number of passengers and household usage.

Door Arrangement

Door locations can be coordinated with the villa's floor plan.

Materials

Possible finishes include:

• Stainless steel

• Glass

• Aluminum

• Decorative panels

Lighting

LED lighting can be integrated into the ceiling or cabin walls.

Exterior Enclosure

For outdoor installation, the enclosure can be designed to match the building facade.

17. How to Choose the Right Elevator for a Self-built Villa

Number of Floors

Determine the number of floors requiring elevator access.

Travel Height

Measure the exact vertical distance between the lowest and highest stops.

Passenger Capacity

Consider normal family use and whether the elevator will transport luggage or household items.

Cabin Size

Select a cabin that provides sufficient space without consuming excessive building area.

Installation Location

Compare indoor, balcony, exterior wall, and other possible locations.

Structural Conditions

Confirm the building's ability to support the elevator.

Climate

For outdoor installations, consider rainfall, humidity, temperature, sunlight, wind, and corrosion.

Safety

Review all available safety and emergency functions.

After-sales Service

Consider installation support, maintenance, spare parts, warranty, and technical assistance.

18. Common Problems and Solutions

Problem 1: Elevator Will Not Start

Possible causes include:

• Power failure

• Door not closed

• Emergency stop activated

• Safety circuit fault

• Controller problem

Check basic conditions and contact qualified maintenance personnel if the problem remains.

Problem 2: Door Will Not Close

Check whether an object is blocking the doorway.

Never disable the door safety sensor.

Problem 3: Unusual Vibration

Unusual vibration may indicate a mechanical, guide, motor, or installation issue.

The elevator should be inspected by qualified technicians.

Problem 4: Incorrect Leveling

If the cabin repeatedly stops above or below the landing, professional adjustment may be required.

Problem 5: Outdoor Elevator Shows Corrosion

Corrosion can occur when an elevator is exposed to humidity, salt air, or rain.

Appropriate corrosion-resistant materials and regular inspection can help reduce the risk.

19. Frequently Asked Questions

FAQ 1: What is a Traction-type Backpack Home Elevator for a Self-built Villa?

It is a residential elevator using an electric traction drive and backpack-style supporting structure, designed for customized residential buildings such as self-built villas and private houses.

FAQ 2: Is a Backpack Elevator suitable for self-built villas?

Yes. The flexible structure can be adapted to many custom villa layouts, subject to structural and technical assessment.

FAQ 3: Can the elevator be installed in an existing villa?

Potentially yes. A professional site survey is required to determine available space, structural conditions, and installation requirements.

FAQ 4: How many floors can it serve?

The number of floors depends on the elevator model, travel height, drive system, and local requirements. Residential configurations can be customized for different numbers of stops.

FAQ 5: What is the typical load capacity?

Many residential configurations can be designed around 250–450 kg, although the final rated load must be selected according to the project.

FAQ 6: How many passengers can use it?

Depending on the cabin size and rated load, a residential elevator can commonly be configured for approximately 2–5 passengers.

FAQ 7: Can it be installed outdoors?

Some configurations can be installed outdoors. Outdoor installations require appropriate weather protection, structural support, drainage, and corrosion-resistant components.

FAQ 8: Can the elevator be installed beside a staircase?

Depending on the available space and building structure, a backpack elevator can potentially be installed beside a staircase.

FAQ 9: Does a self-built villa elevator require a machine room?

Not necessarily. Some modern residential traction elevators use compact or machine-roomless configurations. The exact requirement depends on the selected design.

FAQ 10: Does it need an elevator pit?

Pit requirements depend on the elevator configuration. Some residential systems can reduce pit requirements, but this must be confirmed through technical drawings.

FAQ 11: Can the cabin be customized?

Yes. Cabin dimensions, materials, lighting, doors, control panels, and other design elements can often be customized.

FAQ 12: Can glass be used for the elevator?

Depending on the design, safety glass can be used for cabin panels or exterior elevator enclosures.

FAQ 13: Is a traction elevator suitable for elderly residents?

A properly designed and maintained home elevator can make movement between floors easier for elderly residents and other users who find stairs inconvenient.

FAQ 14: Can the elevator be added during villa renovation?

Yes, depending on the building structure. External installation can sometimes reduce the need for extensive internal reconstruction.

FAQ 15: What information does the manufacturer need for a quotation?

Useful information includes the number of floors, floor height, travel height, cabin size, rated load, installation location, available space, door arrangement, power supply, and building structure.

FAQ 16: What is the benefit of a backpack structure?

The backpack arrangement can place supporting and guiding components toward one side of the cabin, potentially making the elevator easier to integrate into space-limited residential layouts.

FAQ 17: How often should the elevator be maintained?

Maintenance frequency should follow the manufacturer's instructions and applicable local regulations.

FAQ 18: What happens during a power failure?

Depending on the selected configuration, the elevator may include emergency lighting, alarm functions, backup power, automatic rescue, or other emergency systems.

FAQ 19: Is a self-built villa elevator expensive?

The total cost depends on load capacity, number of floors, cabin dimensions, drive system, installation method, materials, structural work, transportation, installation, and local requirements. A customized quotation is therefore necessary.

FAQ 20: What should I prepare before purchasing?

Prepare the villa floor plans, floor heights, available elevator space, intended installation position, required passenger capacity, preferred cabin size, power supply information, and any architectural or design requirements.

20. Conclusion

The Traction-type Backpack Home Elevator Self-built Villa is a flexible residential vertical transportation solution designed to meet the special requirements of customized villas and private houses. Its combination of traction drive technology and backpack-style construction can provide smooth movement while offering flexible installation possibilities.

For self-built villas, the most important advantage is the ability to coordinate elevator design with the building's actual architecture. Rather than forcing a standard elevator into an unsuitable location, homeowners can consider the number of floors, floor height, cabin size, structural support, staircase position, balconies, exterior walls, and overall architectural style when developing the elevator solution.

A traction-type backpack home elevator can be suitable for new villa construction, villa renovation, duplex houses, multi-generational homes, and other private residential properties where accessibility and space efficiency are important.

The selection process should begin with a professional site survey and technical assessment. Buyers should confirm rated load, cabin dimensions, travel height, door configuration, pit and overhead requirements, electrical specifications, safety functions, installation requirements, maintenance support, and applicable local regulations.

For outdoor or balcony installations, additional attention should be given to rain protection, drainage, corrosion resistance, wind exposure, structural support, and electrical protection.

Ultimately, the best Traction-type Backpack Home Elevator for a Self-built Villa is one that matches the building's structure, family requirements, available space, architectural design, climate, safety requirements, and long-term maintenance needs. With appropriate planning, professional installation, and regular maintenance, a customized Traction Backpack Home Elevator can provide reliable and convenient vertical mobility while becoming an integrated part of a modern private villa.
